Energy Meters & Basic Multi-function Meters (LCD Single Line Display)
Features:
- Wide auxiliary supply range 80- 300 V AC/DC
- Programmable CT & PT settings (primary and secondary)
- Compatible with single-phase, LT and HT applications (3P4W/ 3P3W)
- Dedicated calibration LEDs for easy testing
- Programmable scroll-lock feature to control parameter display
- Measures and displays Energy (active, reactive and apparent) ,Power, MD, Neutral Current, K factor, RPM, Distortion & True PF
- Accuracy class options: Class 1.0 or Class 0.5s
- Communication on RS485 with MODBUS protocol (Optional)

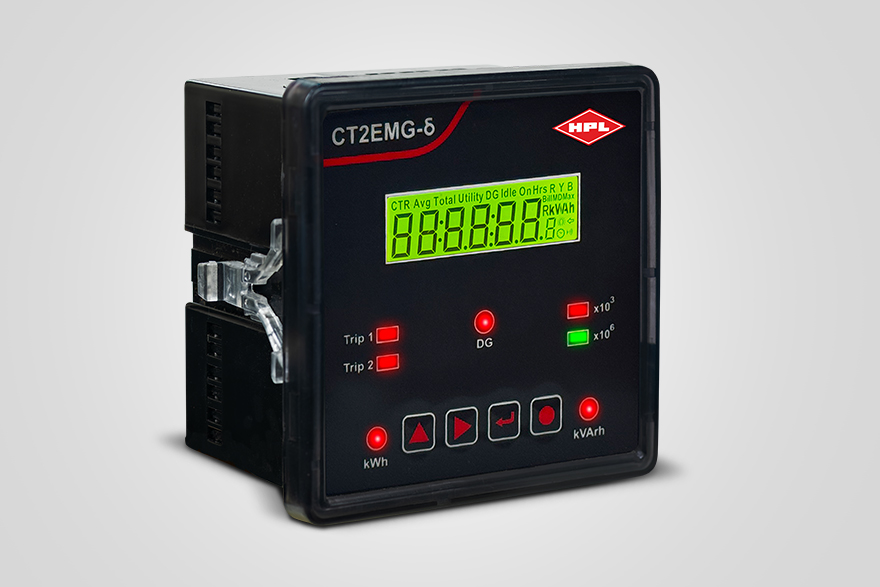

Dual Source Multifunction meters
- Automatic source discrimination with separate kWh/kVAh/kVArh registers for Mains and DG makes billing, diesel reconciliation, and energy audits far more accurate and transparent.
- Built‑in MD (kW/kVA) logging for each source helps you right‑size contract demand and generator capacity, directly reducing penalties and fuel cost.
- Advanced power quality measurements like THD, distortion PF, and K‑factor protect transformers and cables by revealing hidden harmonic issues early.
- On‑board multifunction relays (Delta model) allow auto‑load shedding or source‑wise protection without extra controllers, saving panel space and wiring cost.
- RS‑485 (Modbus) connectivity and favorite display mode make integration with EMS/BMS simple while giving operators quick access to only the parameters they need.
- Rugged 96×96 design with IEC 61010 safety compliance and IP54 front protection ensures dependable operation in harsh industrial panels year after year.
